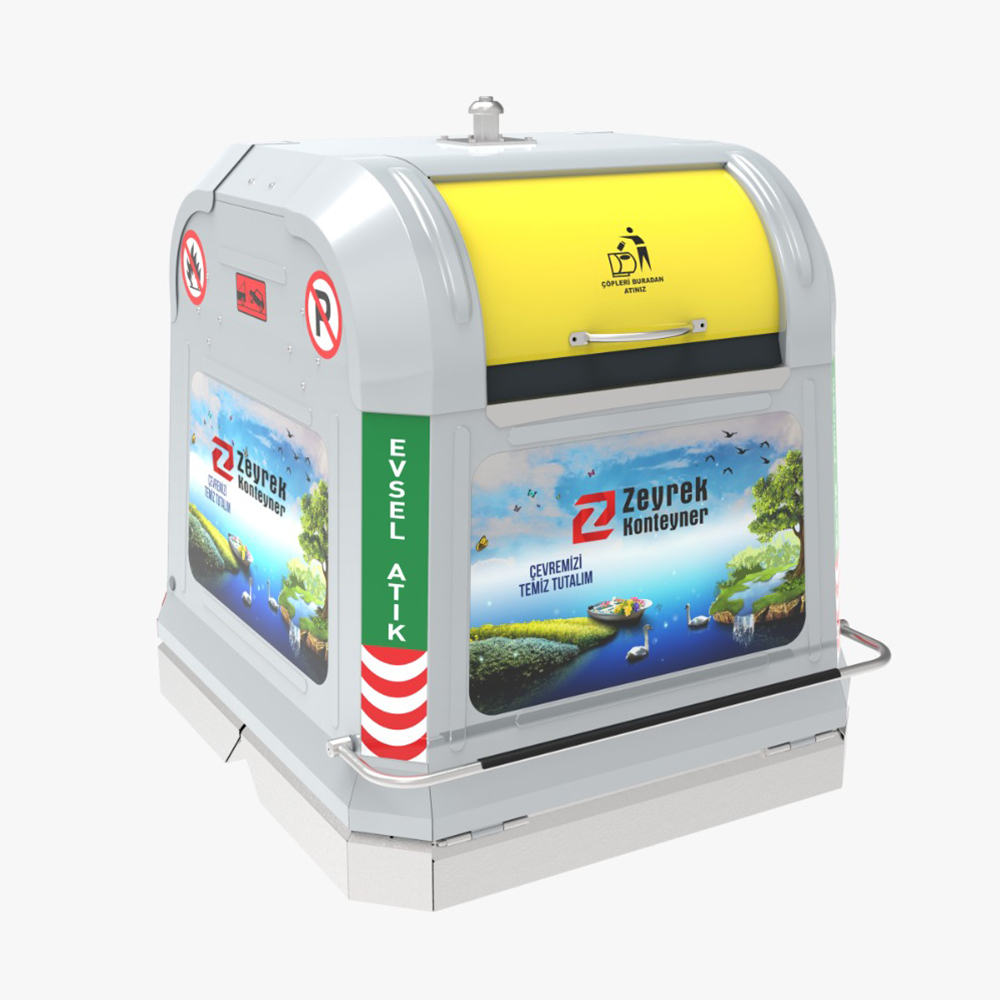

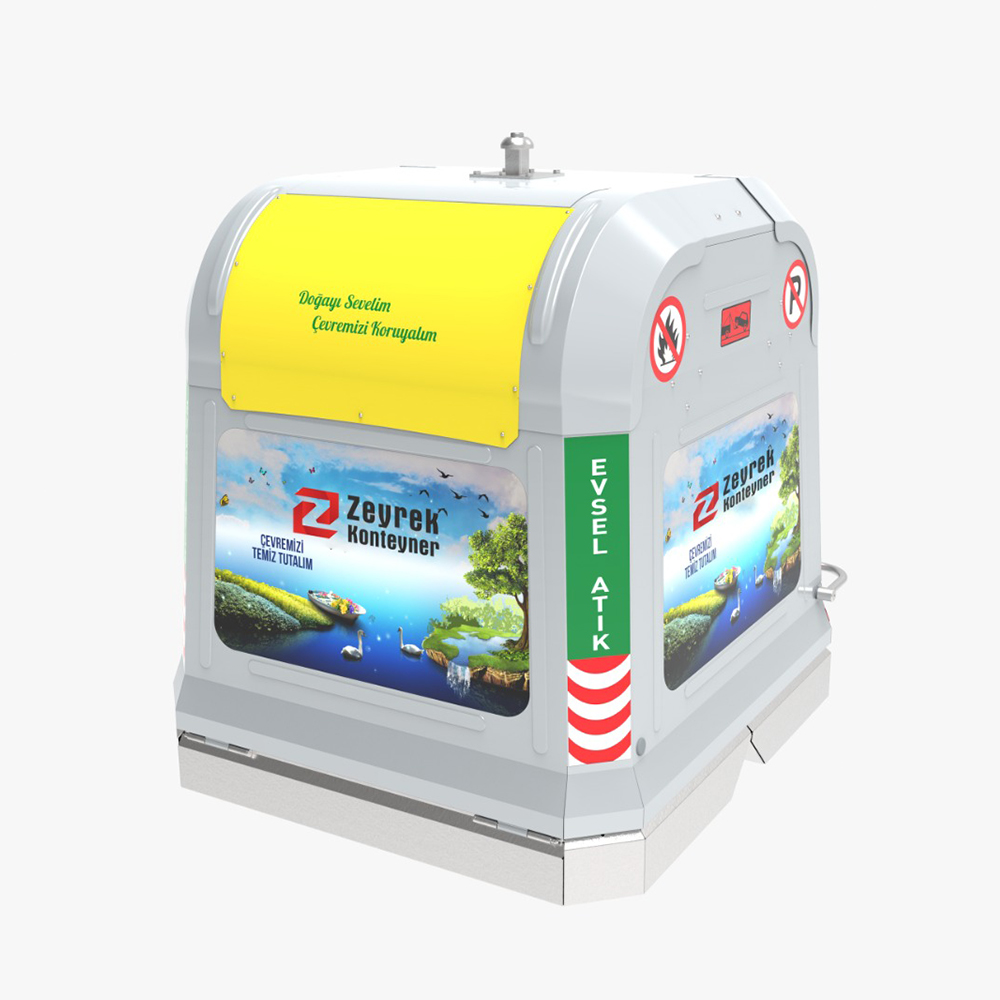

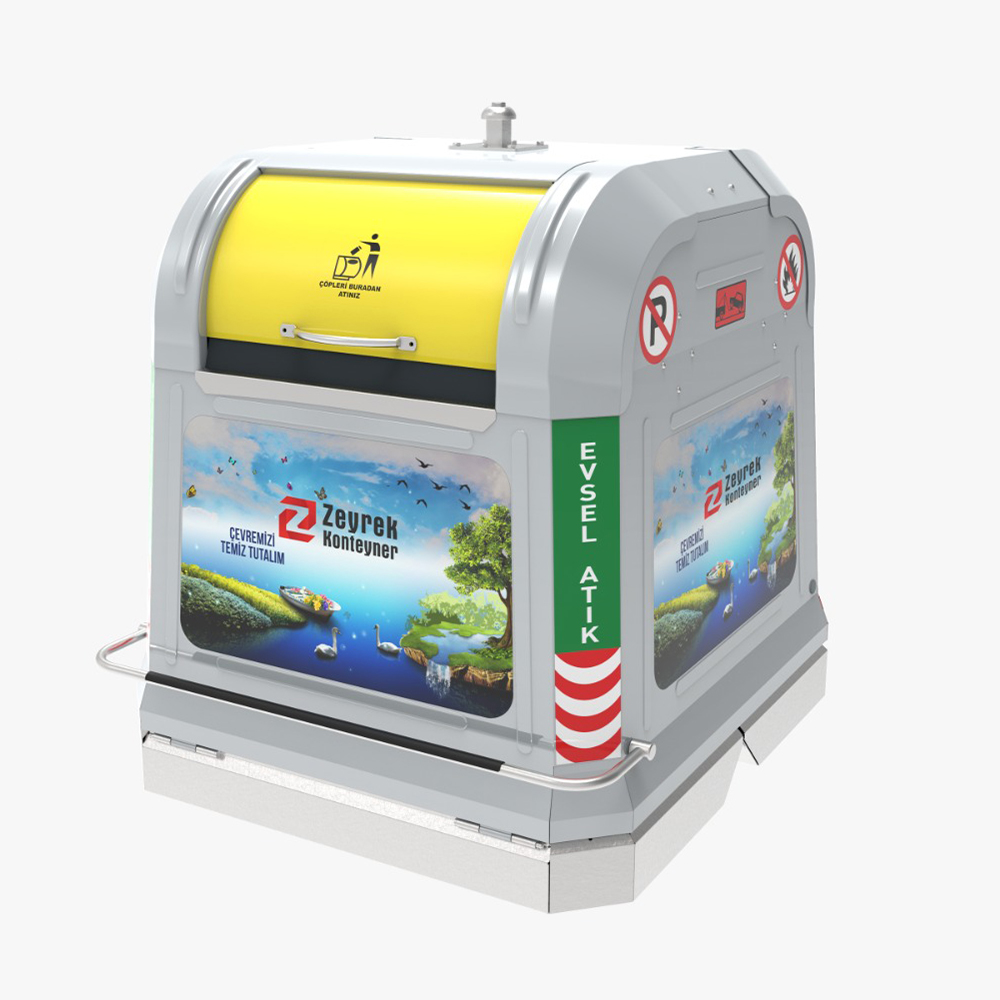

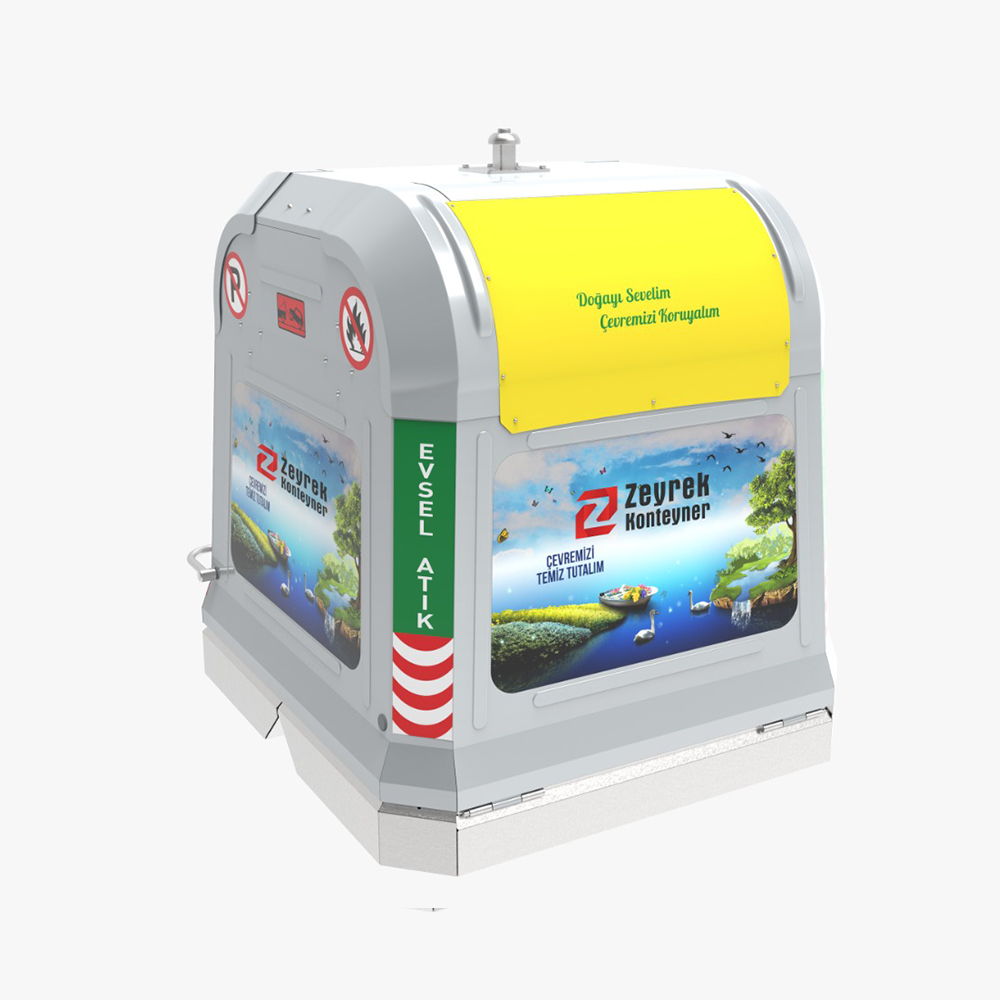

3000 LITER OVERGROUND WASTE CONTAINER
PRODUCT CODE:YU-3000
TECHNICAL SPECIFICATION OF 3.000 LITER DRUM LID OVERGROUND CONTAINER SYSTEM
-The overground container system will lift the container, which the driver manages with the help of a remote control by getting off or on the vehicle, from the lifting mechanism of the container with a crane on the vehicle, which can be controlled by automatic and manual control, and make the unloading on the vehicle by opening the lower hatches by means of a remote control.
-Overground container garbage capacity is3,750 Lt. The container body measures at least 1750×1600 mm and its height is 1600 mm
-The body sheet of the container made of galvanized sheet in TS en 10346 standard with a thickness of 2 mm, its resistance to impact and environmental conditions increased with electro-static furnace paint.
-The upper body sheet of the container made of galvanized sheet in TS en 10346 standard with a thickness of 2 mm, its resistance to impact and environmental conditions increased with electro-static furnace paint.
-The edge of the overground container has been given strength by twisting the body sheets.
-The overground container system can assembled & de-assembled.
-On the front and back of the overground container, the drum system garbage disposal entry has made of 1.2 mm thick galvanized sheet in TS EN 10346 standard. Its resistance to impact and environmental conditions increased with electro-static furnace paint.
- Inox sheet(AISI 304) has been used for the entrance of the waste entry. It should be more sanitary, prevent scratching and provide an aesthetic appearance.
- The drum cover dimensions of the overground container is at least 400mm x 1100mm and the ground clearance is 1100 mm.
- The drum cap has gas piston for easily opening and closing. There is handle for held by the user.Body connection provided by a bearing.
- The rubber strip mounted on the bottom of the drum to prevent noise and odor to the from overground container cover ensure that the drum cover closes quietly and prevent any harm to users.
- Bolts used in the system is galvanized at least 8.8 quality (DIN 961–933) , nuts (DIN 985) is galvanized with fiber.
- The spigot lifting apparatus of the container is in the balance center of the container and installed at the top of the container by placing a lifting apparatus on the 50×50 profile, so that the lifting operations can be controlled by the operator from one point.
- The bottom cover sheets are hot dipped galvanized according to TS EN ISO 1461 standards with a thickness of 3 mm. In addition, it is designed to be 160 mm deep, capable of transporting liquid waste in a capacity of 350 liters.
- Overground garbage containers are not have screws or other mechanical equipment to which the garbage can be installed during unloading. The hinges of the lower lids do not go outside the container body. The container body connected to the lids by means of welded hinges on the bottom lids.
- Suitable materials have used for carrying capacity in the cover opening mechanism.
- The internal mechanism of the containers, the spigot head lifting and unloading system fully coated with hot dip galvanized according to TS EN ISO 1461 standards.
-Containers bottom covers open at 90° degrees so that the garbage can be completely emptied.
- The connections of the bottom cap opening arms made by screw joint and ø27×3 mm galvanized steel pipe used.
- The back of the container may be closed. Production will be made on request.
- Overground container inside and outside is painted with electro-static oven paint in the desired color
- The desired logo, warning safety sign, type of garbage and sticker coating labels can made
- Containers are under warranty against rust and production defects for 2 years.
